- 【540 OutLaw Brushless Motor】540 sensored brushless motor competition level,shaft 3.175 for 1/10 scale RC racing car.
- 【High Speed High RPM 】The new and unique stator design of V5R silver-black stock motor is optimised to provide strong torque and high RPM.
- 【High Grade Material】 CNC Machined Billet T6 Aluminum Heatsink Can,New stator coating for better heat dissipation and long termsurface corrosion resistance. Accurately mounted sensors for the best possible KV and RPM.
- 【2 Poles Design】 2-pole ultra-smooth linear, high temperature and high speed explosion-proofrotor at 200°C,original imported 1El/AlW(H) grade high temperature resistant enameled wire fromMWS brand in USA.
- 【Unique Design】High Purity Copper Windings Maximizes Conductivity.Adjustable Timing, Dual sensor port.Removable/Replaceable high speed Rotor. easy to clean and maintain for racers.

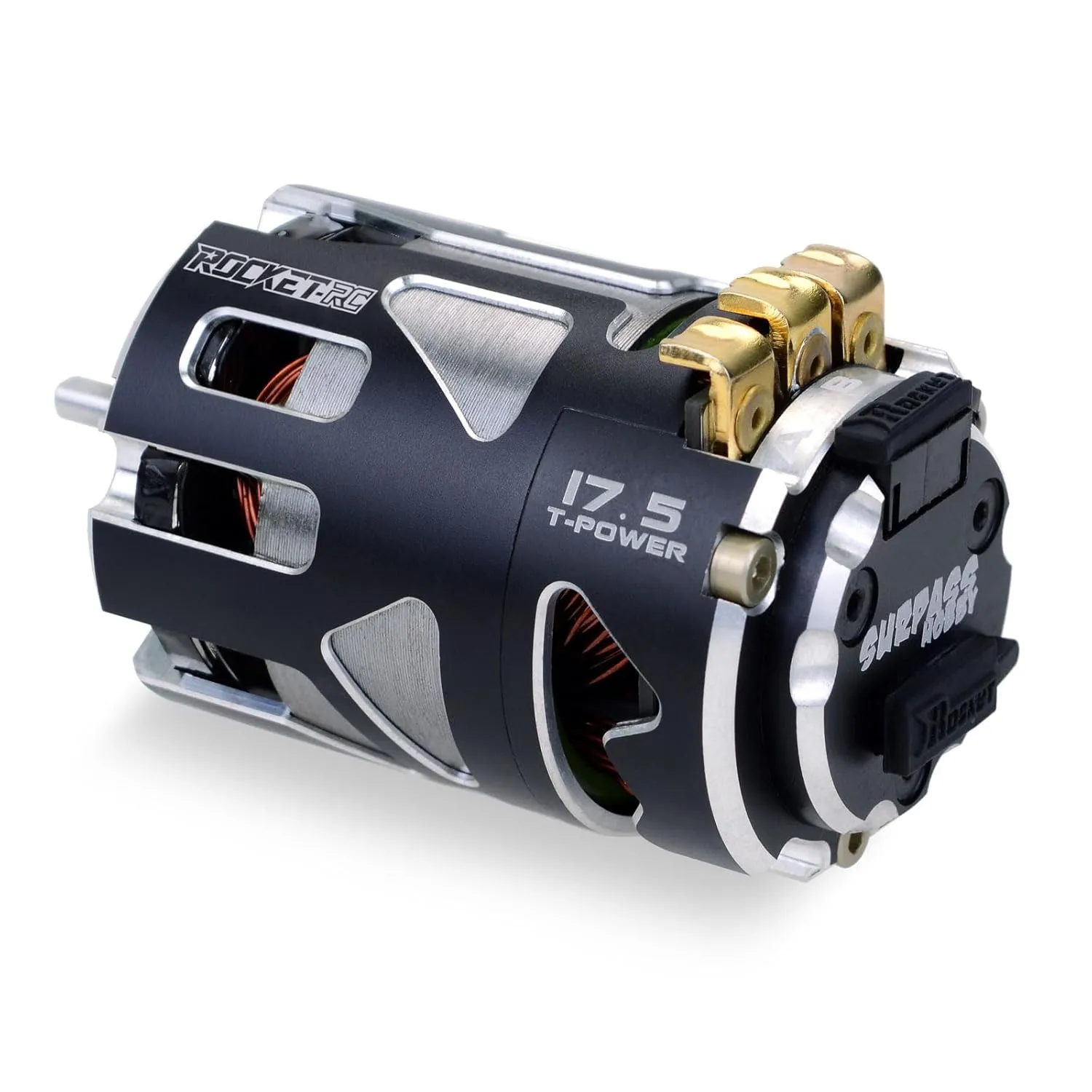

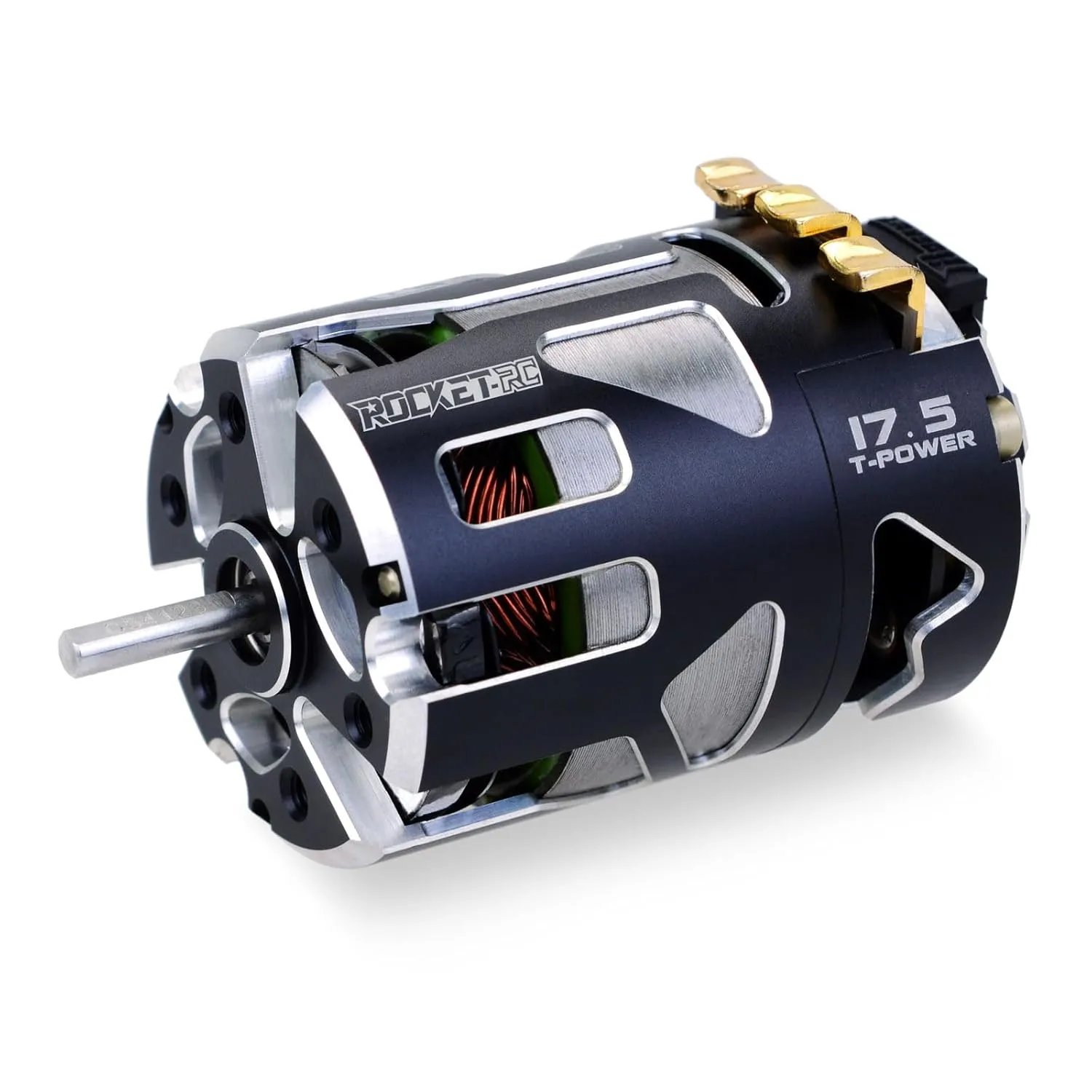

Surpass Hobby Rocket 540 V5R Brushless Motor is Specially Designed for 1/10 RC Racing car. It is compatible with sensored/sensorless ESC.
Features:

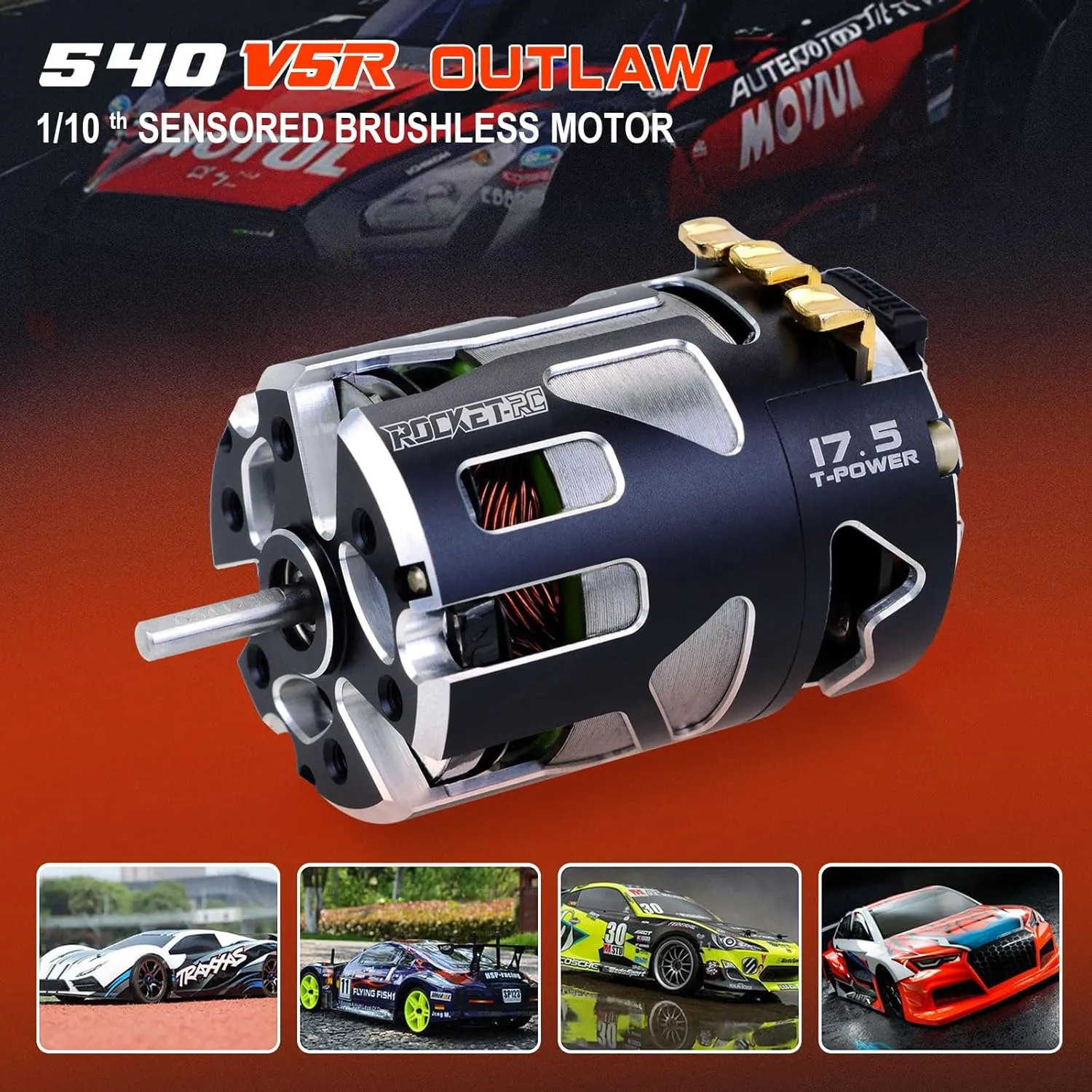

1.540 V5R Outlaw , suitable for 1/10 RC car.

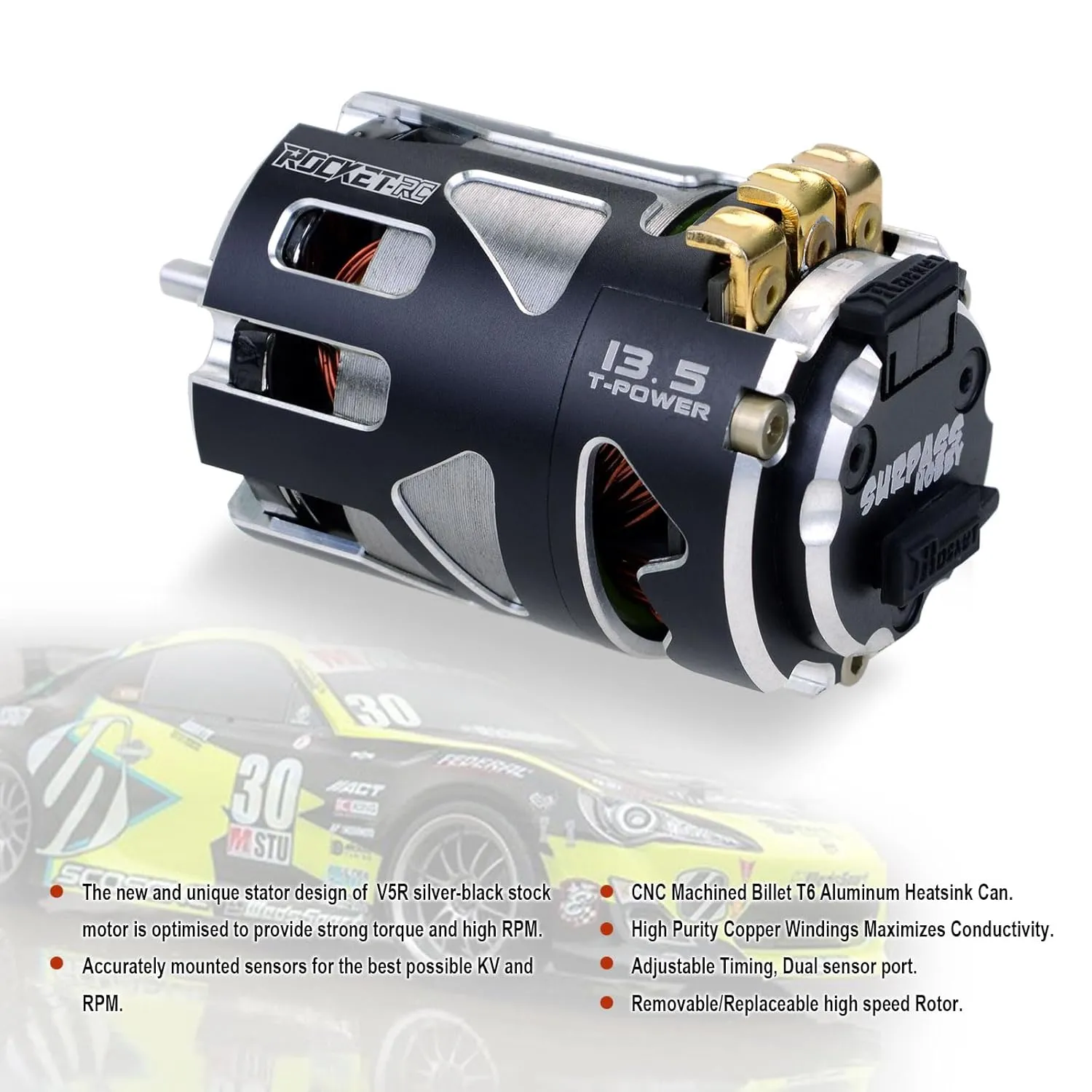

2.The new and unique stator design of V5R silver-black stock motor is optimised to provide strong torque and high RPM.

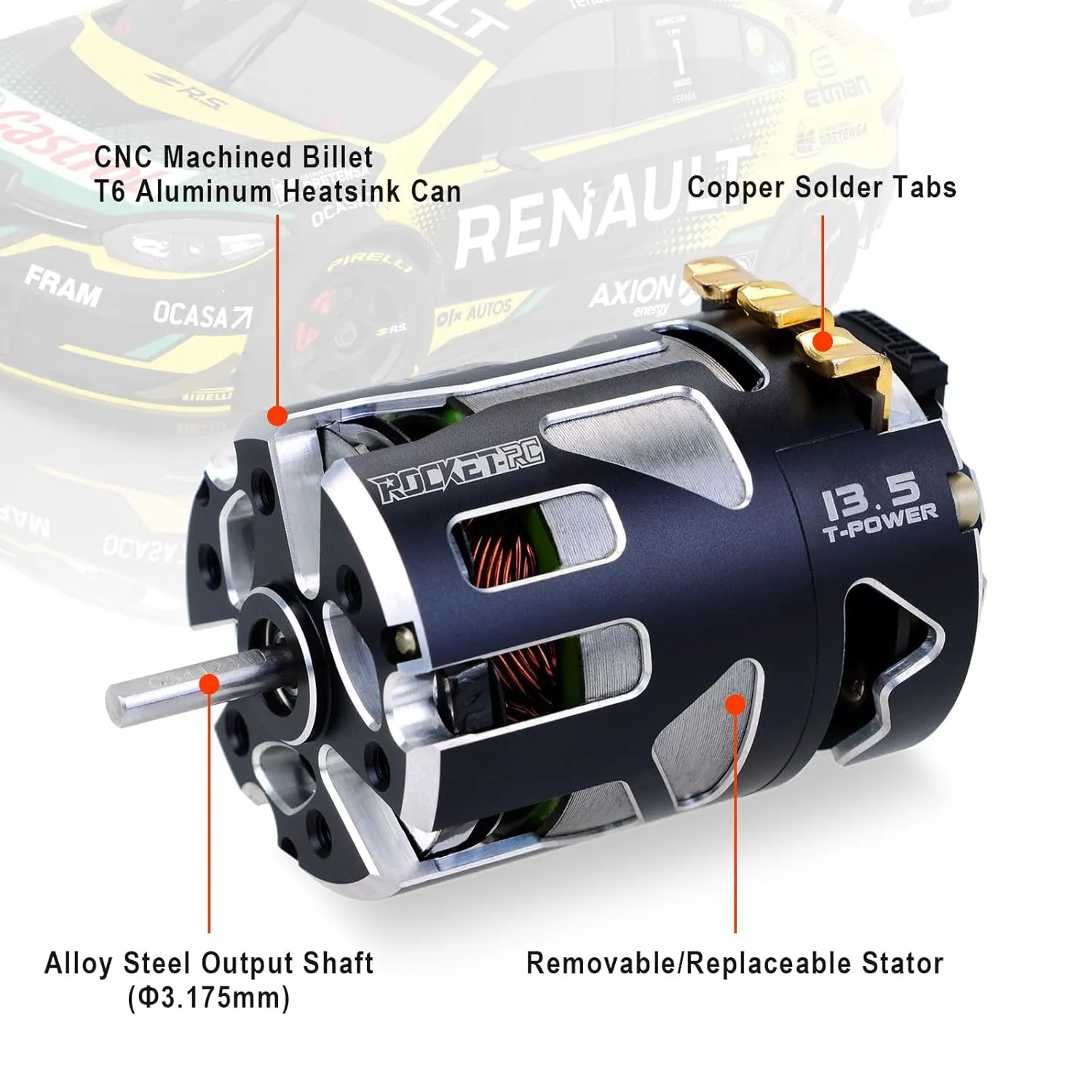

3.CNC Machined Billet T6 Aluminum Heatsink Can,New stator coating for better heat dissipation and long termsurface corrosionresistance.
4.Accurately mounted sensors for the best possible KV and RPM.

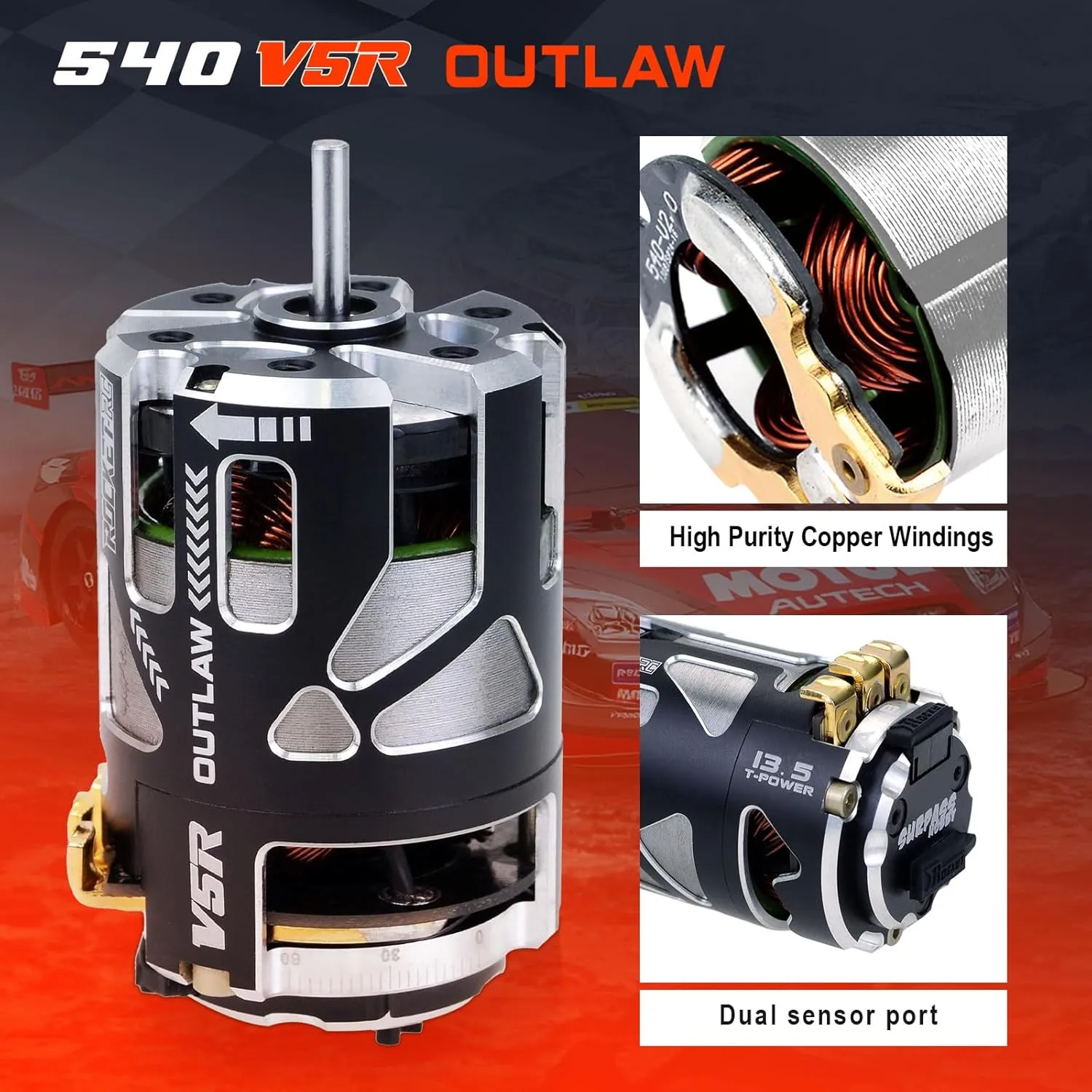

5.High Purity Copper Windings Maximizes Conductivity.
6. Adjustable Timing, dual sensor port. Removable/Replaceable high speed Rotor.

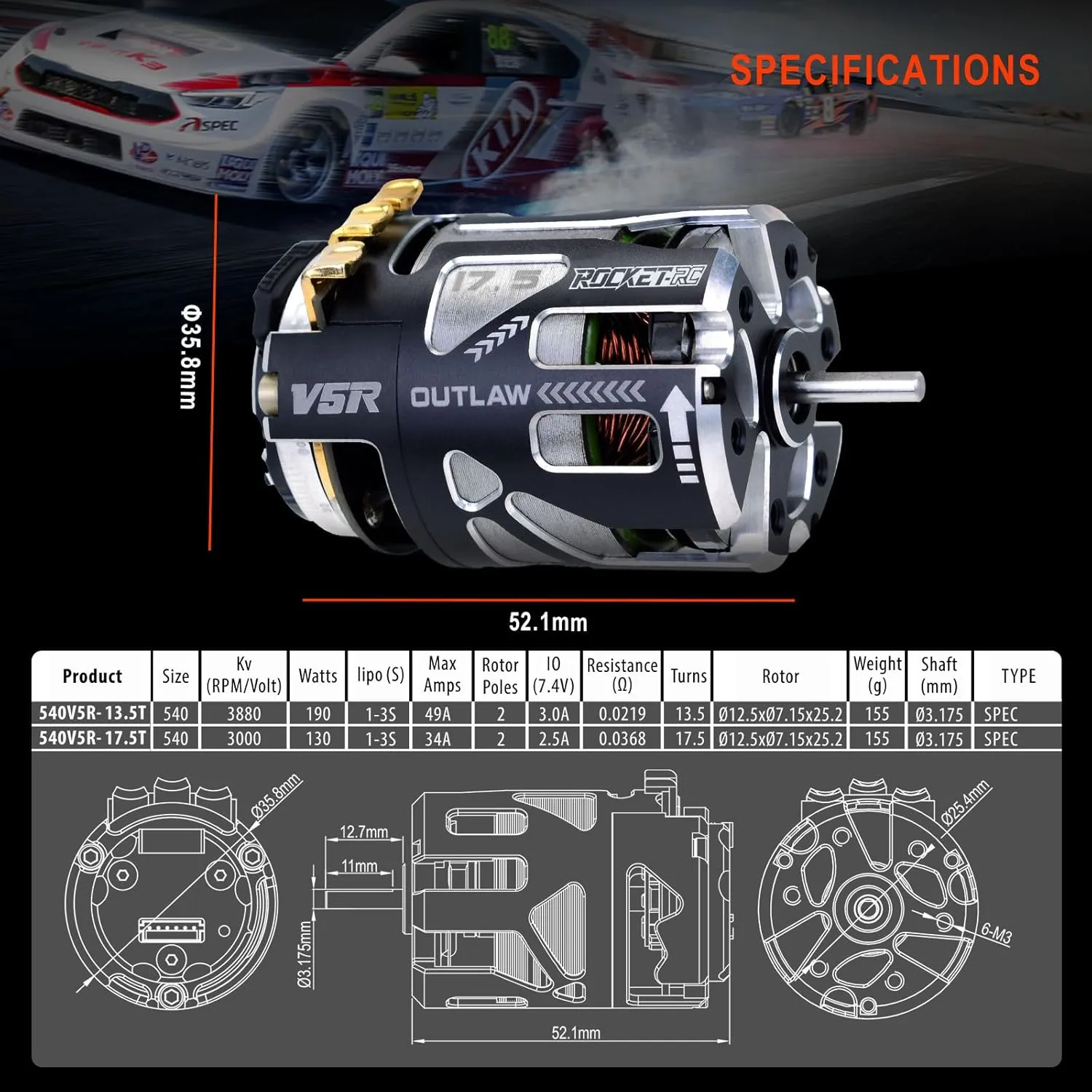

Specifications:
Size: 540 V5R Drift Motor
Design: Sensored
Rotor Poles: 2
Turns: 17.5T
Max Watts: 130W
Support Battery: 1-3s LiPo
Max Amps: 34A
Diameter: 36mm
Length: 54mm
Shaft diameter: 3.175mm
Type: Outlaw Competition(SPEC)
Package List:
1 * 540 V5R Outlaw Sensored Brushless Motor
1 * Sensored Connected Cable
1 * Manual
- Package Dimensions : 4.3 x 2.8 x 1.78 inches; 6.4 ounces
- Date First Available : March 8, 2025
- Manufacturer : SHENZHEN SURPASS TECH CO.,LTD
- Country of Origin : China
