- 【540 Drift Brushless Motor】540 Drift sensored brushless motor for 1/10 scale Drift car.
- 【High RPM 】The new and unique stator design of V5R silver-black stock motor is optimised to provide strong torque and high RPM.
- 【High Grade Material】 CNC Machined Billet T6 Aluminum Heatsink Can,New stator coating for better heat dissipation and long termsurface corrosion resistance. High Purity Copper Windings Maximizes Conductivity,adjustable Timing, dual sensor port.
- 【2 Poles Design】 2-pole ultra-smooth linear, high temperature and high speed explosion-proofrotor at 200°C,original imported 1El/AlW(H) grade high temperature resistant enameled wire fromMWS brand in USA. Accurately mounted sensors for the best possible KV and RPM.
- 【Unique Design】Removable/Replaceable high speed Rotor. removable and reassembled structure design, easy to clean and maintain for racers.

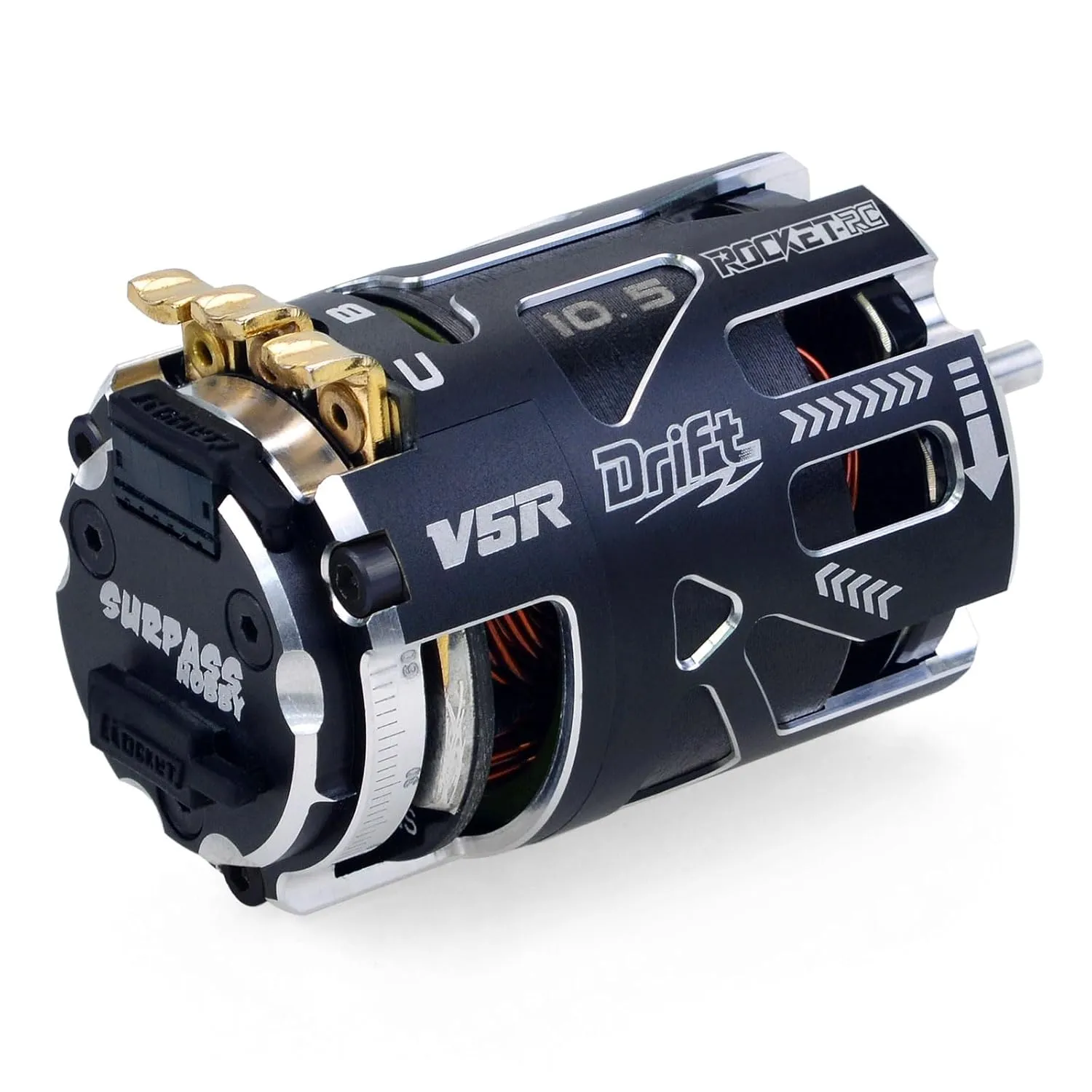

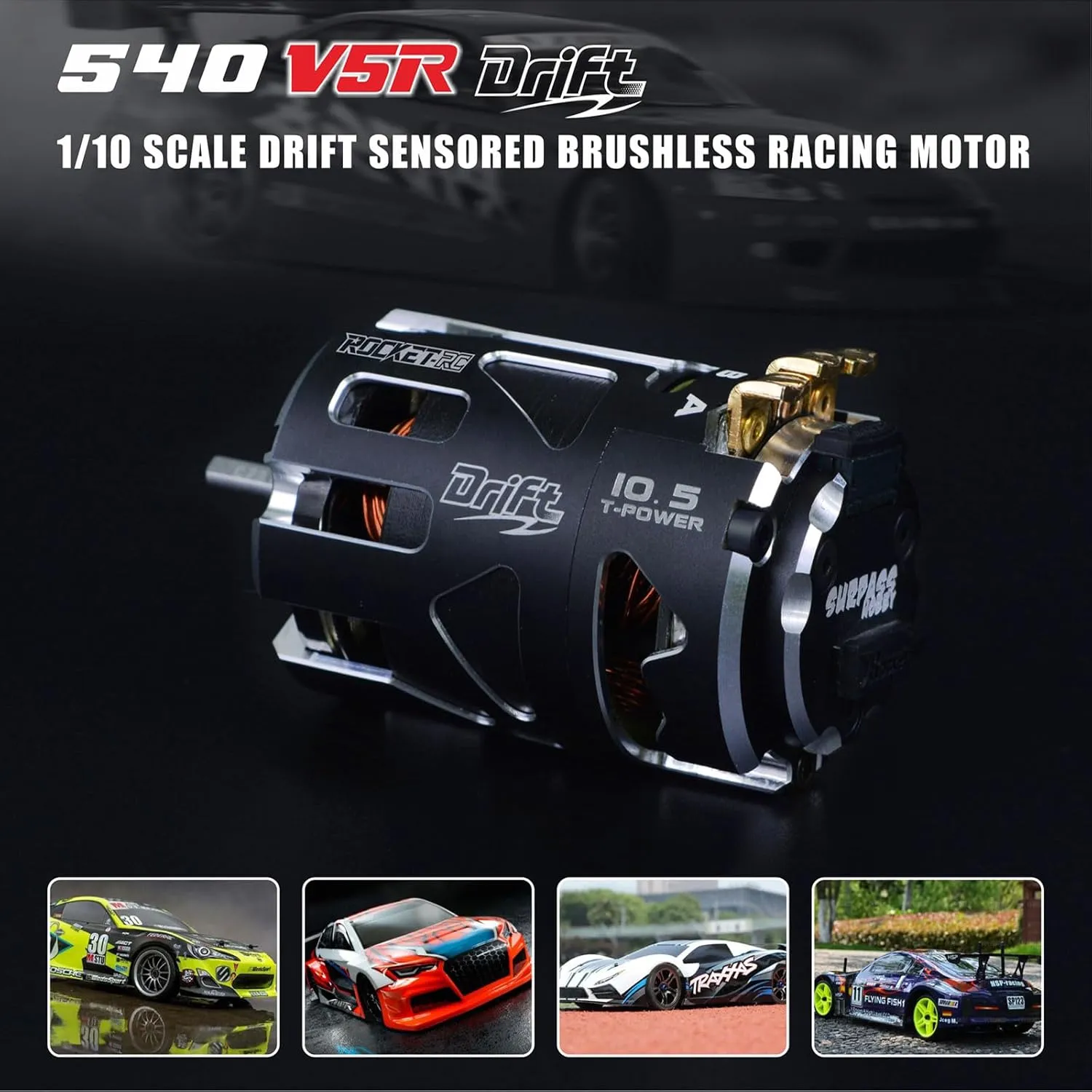

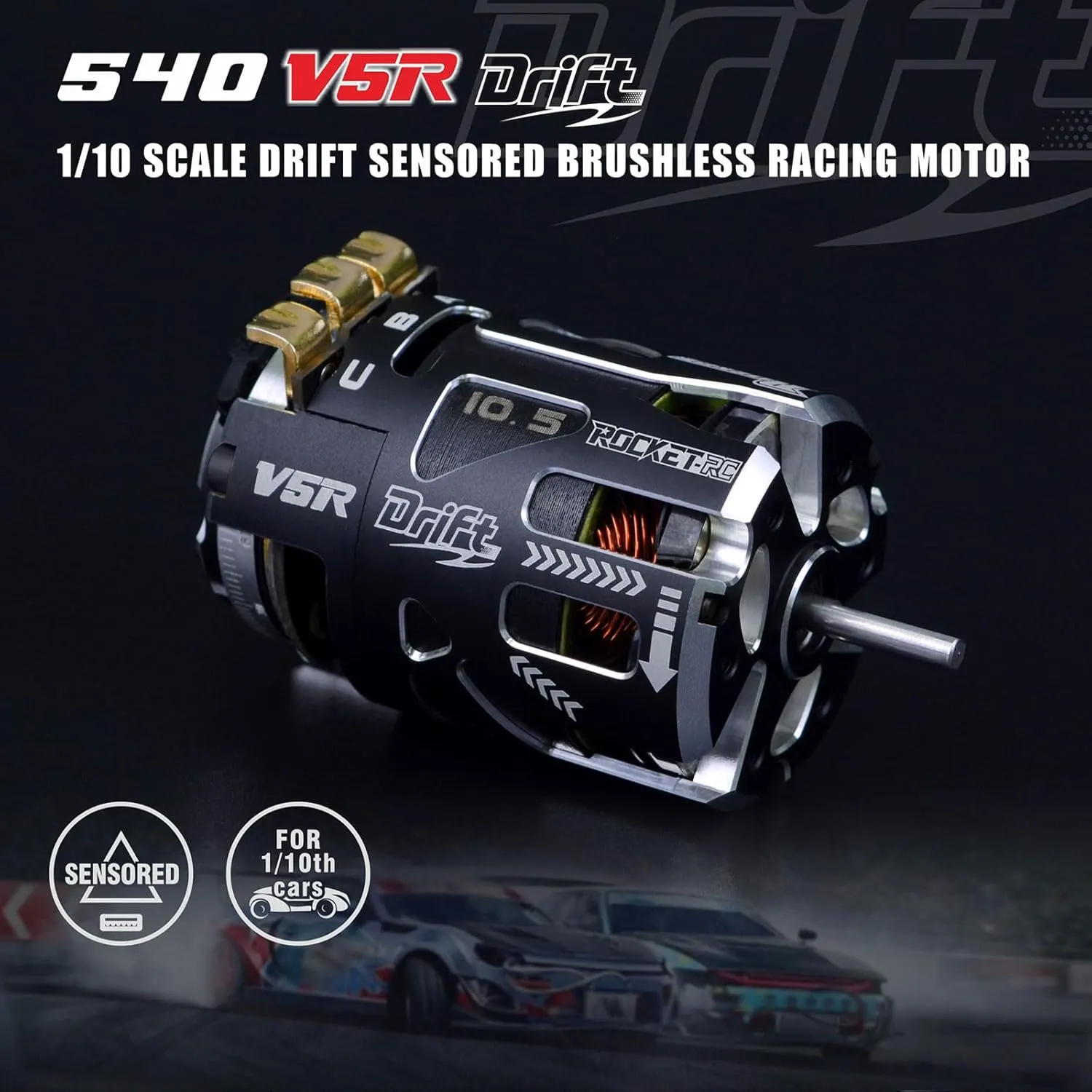

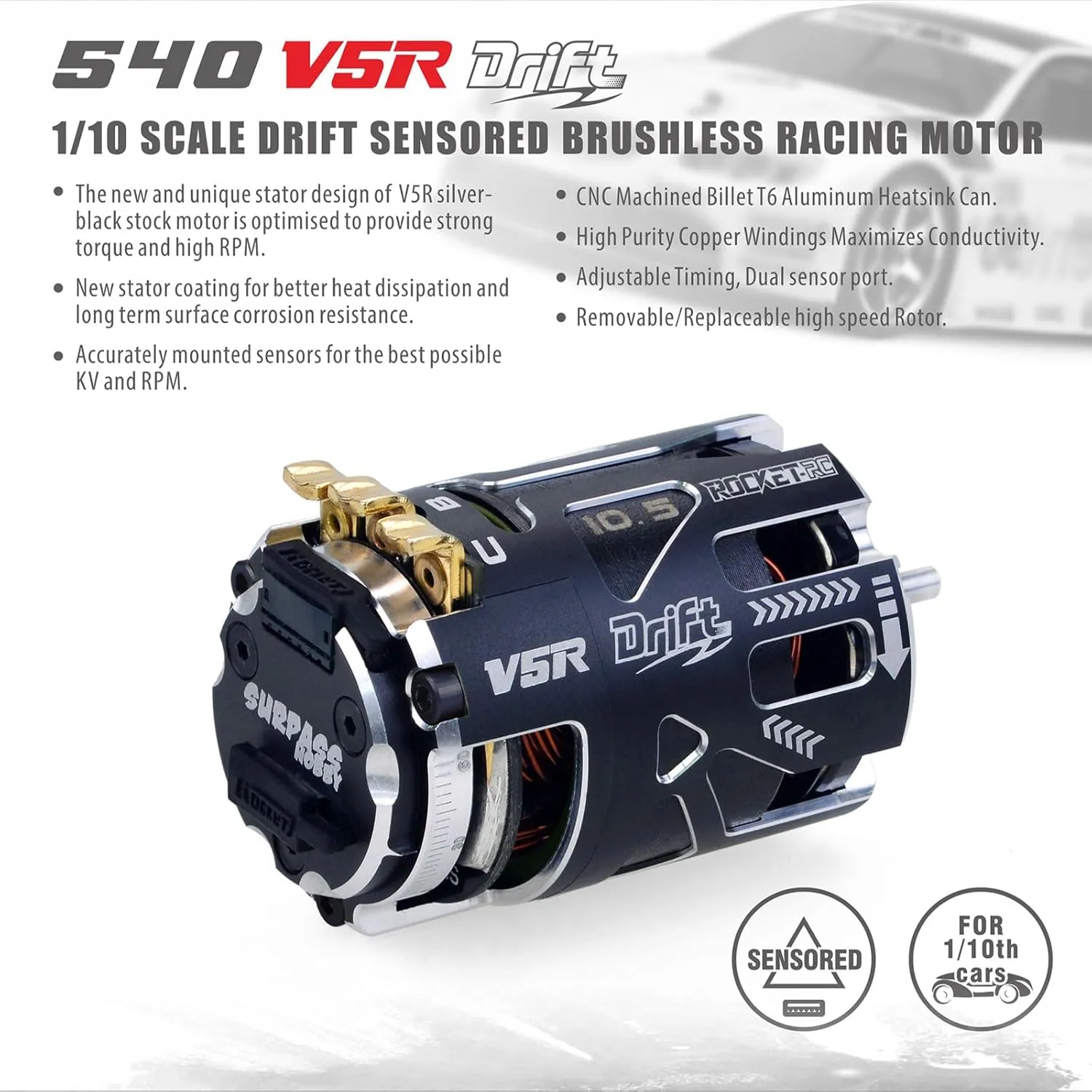

Surpass Hobby Rocket 540 V5R Drift brushless motor is specially designed for 1/10 RC car. It is compatible with sensored/sensorless ESC.
Features:
1.540 V5R Drift , suitable for 1/10 RC car.
2.The new and unique stator design of V5R silver-black stock motor is
optimised to provide strong torque and high RPM.

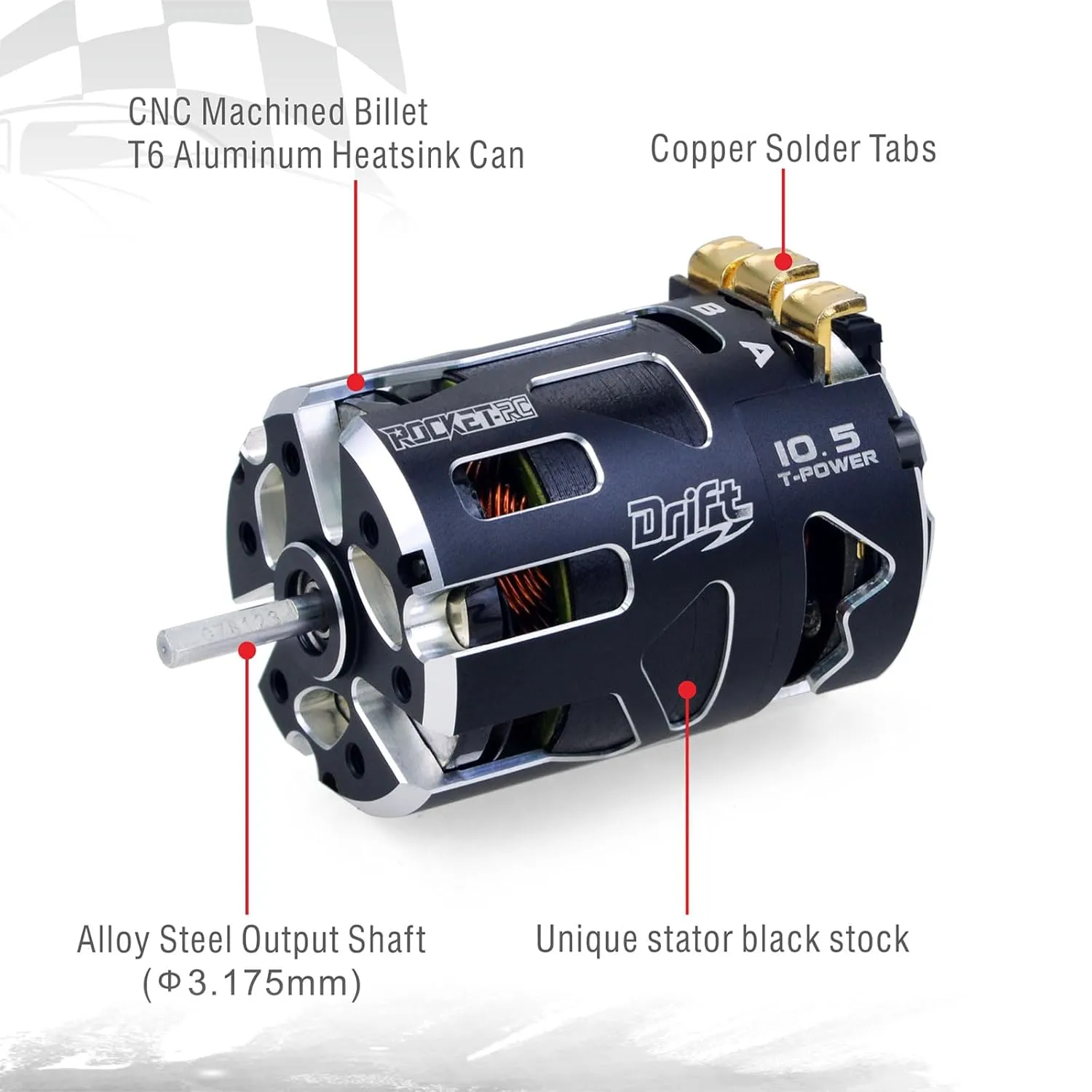

3.CNCMachined Billet T6 Aluminum Heatsink Can,New stator coating
for better heat dissipation and long termsurface corrosion
resistance.
4.Accurately mounted sensors for the best possible KV and RPM.

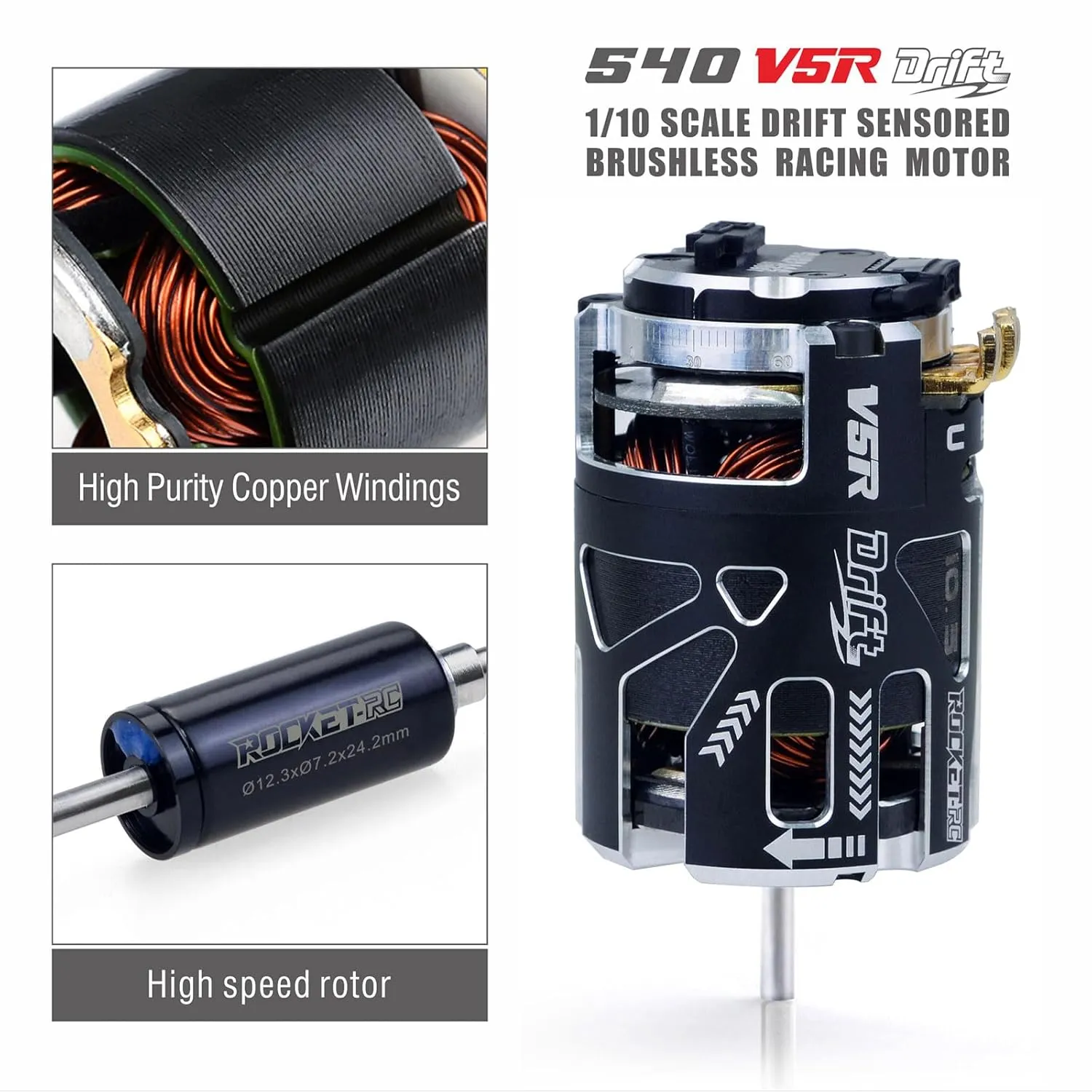

5.High Purity Copper Windings Maximizes Conductivity.
6. Adjustable Timing, dual sensor port. Removable/Replaceable high speed Rotor.

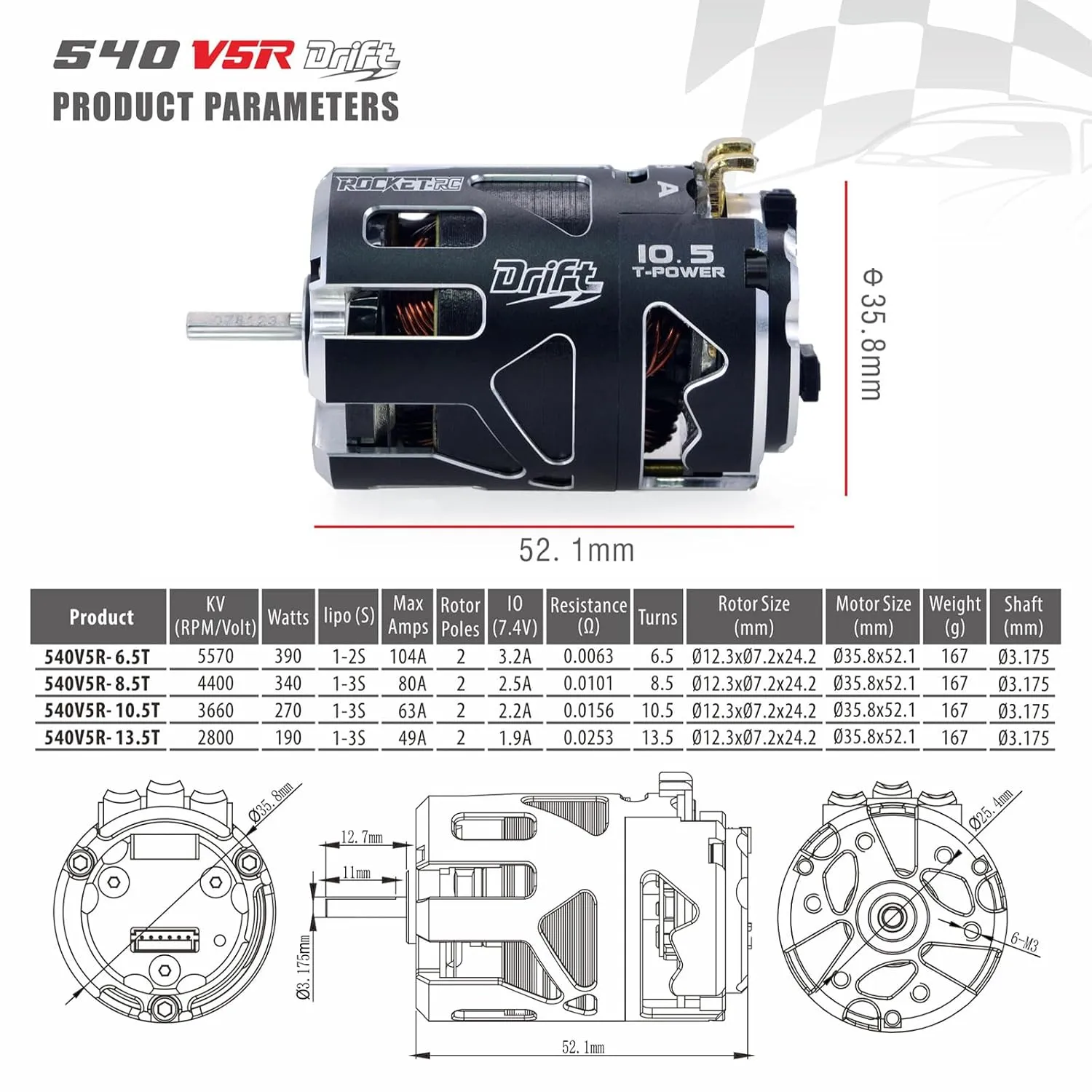

Specifications:
Size: 540
Design: Sensored
Rotor Poles: 2
Turns: 10.5T
Max Watts: 270W
Support Battery: 1-3s LiPo
Max Amps: 270A
Diameter: 36mm
Length: 54mm
Shaft diameter: 3.175mm
Type: Drift
Package List:
1 * 540 V5R Drift Sensored Brushless Motor
1 * Sensored Connected Cable
1 * Manual
- Package Dimensions : 4.3 x 2.8 x 1.78 inches; 6.4 ounces
- Date First Available : February 28, 2025
- Manufacturer : SHENZHEN SURPASS TECH CO.,LTD
- Country of Origin : China
