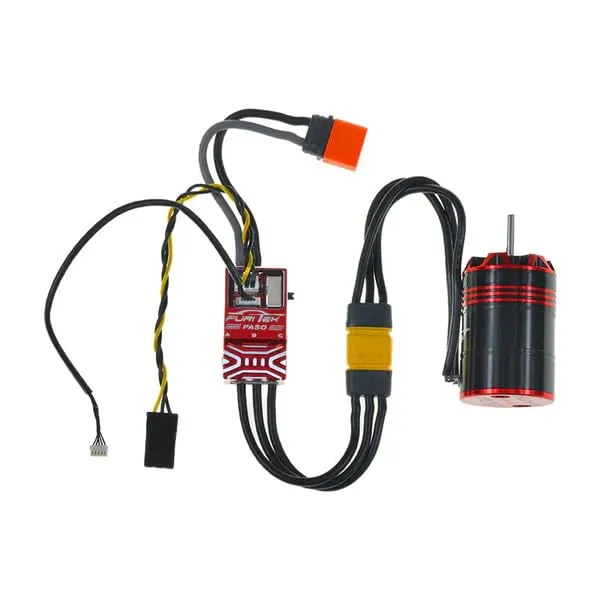

- Furitek, a renowned name in the world of mini crawler electronics, is expanding its horizons by bringing its expertise to new markets. We are proud to present the Furitek SCORPION Brushless Sensored ESC/Motor Power System, designed specifically for the 1/12 Losi .
- This powerful system features a sensored ESC and a high-performance brushless motor, delivering unparalleled performance and smooth control. It is a direct plug and play system for 1/12 Losi . Just need a new TX/RX and it's ready to have a blast.
- Support for Sensored/Sensorless Operation: The SCORPION ESC/Motor combo supports both sensored and sensorless modes with a constant current of 40A and a burst current of 70A. This flexibility ensures optimal performance under various driving conditions.
- Support for Sensored/Sensorless Operation: The SCORPION ESC/Motor combo supports both sensored and sensorless modes with a constant current of 40A and a burst current of 70A. This flexibility ensures optimal performance under various driving conditions.
- Live Tuning: Enjoy real-time tuning with the Furicar App, allowing you to make adjustments on the fly without stopping the vehicle. This feature enhances the user experience by providing immediate feedback and control.
- Smooth Throttle Control: Experience super smooth throttle control for enhanced driving precision, ensuring that every movement of the throttle stick translates into precise vehicle movements.
- Compact and Lightweight: Designed to be mini-sized and lightweight for easy handling and installation, the Furitek SCORPION system is perfect for keeping your 1/12 Losi AWD RC truck agile and responsive.
*** ESC Specifications:
Battery Support: 2-3S LiPo batteries
BEC Output: 5.5V/7.4V, 3A
Constant Current: 40A
Burst Current: 70A
Built-in Power Switch: Integrated for convenience
Built-in Wireless setup module
Dimensions: 0.63 x 1.1 x 0.39 (inch), 16x28x10 (mm)
Weight: 15.2 grams (0.53oz)
*** Motor Specifications:
Motor Type: Sensored Waterproof
Motor Kv: 5600
Watt: 300W
Battery: 2-3S
Resistance: 0.035ohm
Max Current: 30A
Slot/Pole: 12 slot/4 pole
Motor size: 24*35mm
Shaft: 2.3*12mm
Weight: 54g
*** Motor Features:
Sensored 4 Pole hi-torque motor design.
High purity and higher temperature single copper windings ---lower copper losses, very good heat dissipating--maximizes efficiency.
Super thin (0.2mm) stator laminations---lower eddy losses---maximizes efficiency. Japansese NMB --High RPM ABEC5 bearings.
Precision balanced rotor, smoothness for best reliability and maximum RPM. CNC machined 6061 T6 billet aluminum heatsink can.
Precision engineered for maximum energy conversion.
*** Additional Features:
Stock Compatibility: Compatible with the stock pinion and 2.3mm stock shaft of the 1/12 Losi AWD RC trucks.
Built-in Bluetooth Module: Allows for parameter adjustments during operation without opening the electronics.
Intuitive App: The FURICAR App enables drivers to set up and adjust parameters effortlessly.
*** Package Includes:
1x Furitek 40/70A PASO Sensored/Sensorless ESC built-in wireless module
1x Furitek 5600kv KINETIC Brushless Sensored Motor
1x User Manual
2x Sensored Cable
1x Signal Cable
*** This advanced combo brings significant power and smooth control to your 1/12 Losi AWD RC truck, making it a top choice for both novice and experienced drivers. Upgrade your monster truck with the Furitek SCORPION Brushless Sensored ESC/Motor Power System and experience the difference
. *** Support: 1/12 Losi AWD RC
*** Important Note: Heat sink aluminum adaptor is not included, We changed the angle of motor solder to fit in perfectly with Losi .
- Product Dimensions : 3 x 3 x 33 inches; 1.6 ounces
- Manufacturer recommended age : 4 years and up
- Date First Available : November 7, 2024
- Manufacturer : FURITEK - HELIDIRECT
- Country of Origin : China
