- Dynamic Bass Tracking (DBT) technology on the input stage allows full use of the he-li (High Efficiency Low Impedance) amplifier power and enjoy tense and dynamic bass even at very high listening volumes.
- Butterworth 12dB/Oct Low Pass Filter with variable cut-off frequency (50-300 Hz), phase control (0 180°) and adjustable bass boost 0÷6 dB @ 45Hz.
- ART (Automatic Remote Turn-On) function selectable between: Remote input, High level, Audio signal.
- Ultra-slim (6.22 in./158 mm) air suspension enclosure, designed to take full advantage of the performance of the APS 10 DL 10-inch high-impedance speaker.

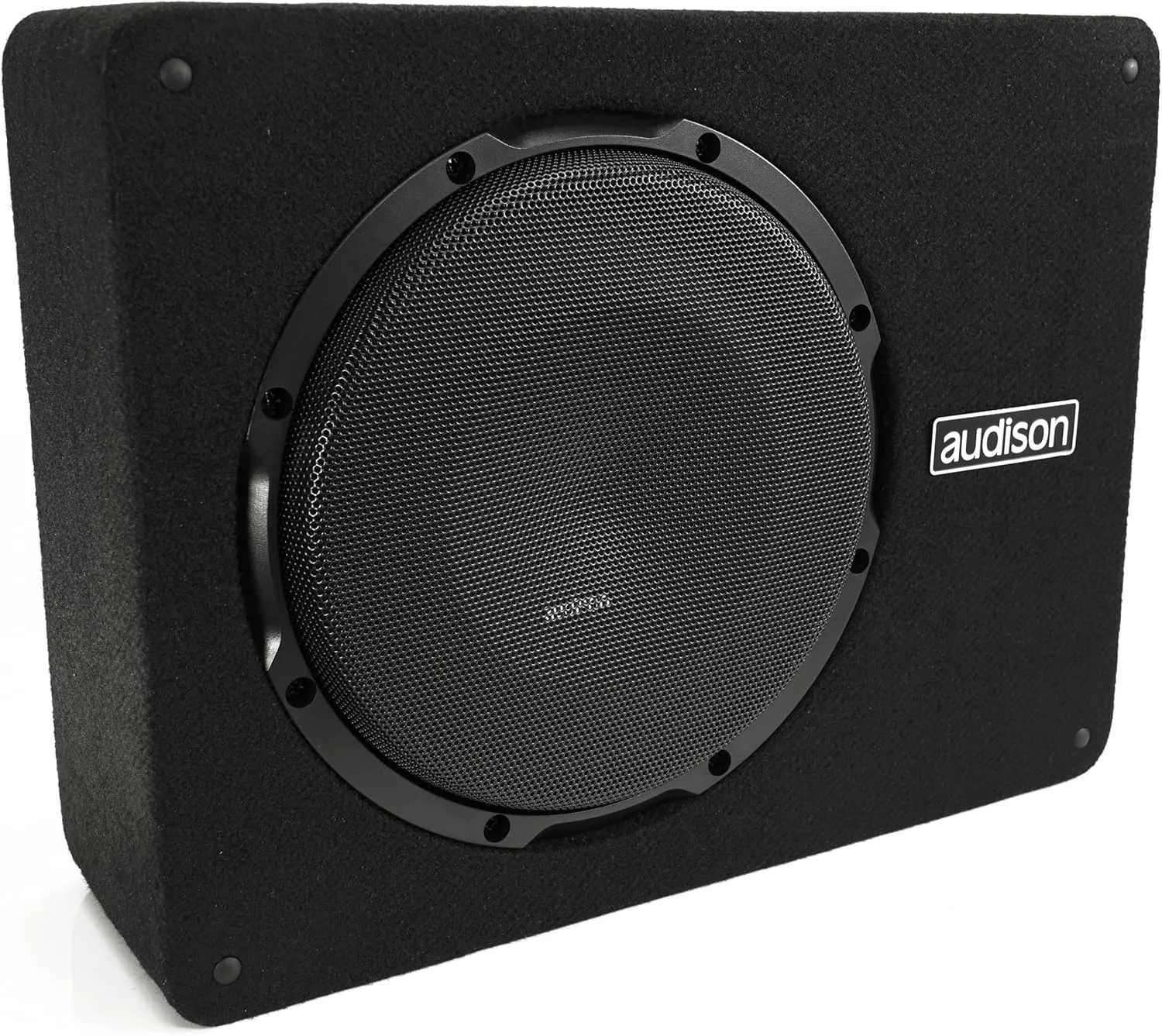

Audison Prima APBX 10 AS 25cm 250mm 400W RMS Flat Active Subwoofer
The Prima APBX 10 AS Active Subwoofer with 25 cm (10') driver features a dedicated high-performance amplifier module that extends all passive box technologies, such as 2S² (2 Sides/2 Sound) design, Plug & Play connection block and ultra compact.
The amplifier module, with performance of 400 watts RMS with the technology developed - Li (High Efficiency/Low Impedance) which, thanks to the absence of the DC voltage amplifier with an impressive efficiency of 90% efficiency, is very close to the theoretical limit of class D.
The elimination of the voltage amplifier was possible thanks to the development of the new dual-coil drivers, which bristle the entire technological background of the primary subwoofers, but stand out for their extremely low impedance (0.16 ohms for APBX 10 AS).
This feature ensures perfect synergy with He-Li (High Efficiency Low Impedance) technology that combines amplifier, speaker and sealed housing to achieve low, loud and sharp frequencies.
The control range is complete and provides optimal control of low frequency emissions in the cab. Butterworth Low Pass Filter at 12 dB / byte. with variable limit frequency (50-200 Hz) can be bypassed when used with a pre-output AP processor assigned to the subwoofer. With the adjustable bass controller (0÷ 6 dB) at 45 Hz, the user can highlight the playback at the bottom of the spectrum.
The high-level input for speakers on a multi-pole connector simplifies integration with OEM audio systems, while the low-level RCA input is for connecting with secondary sources. The automatic on/off function of the subwoofer ART (Automatic Remote Turn-On) can be configured in such a way that it is via the remote control signal of the source,
