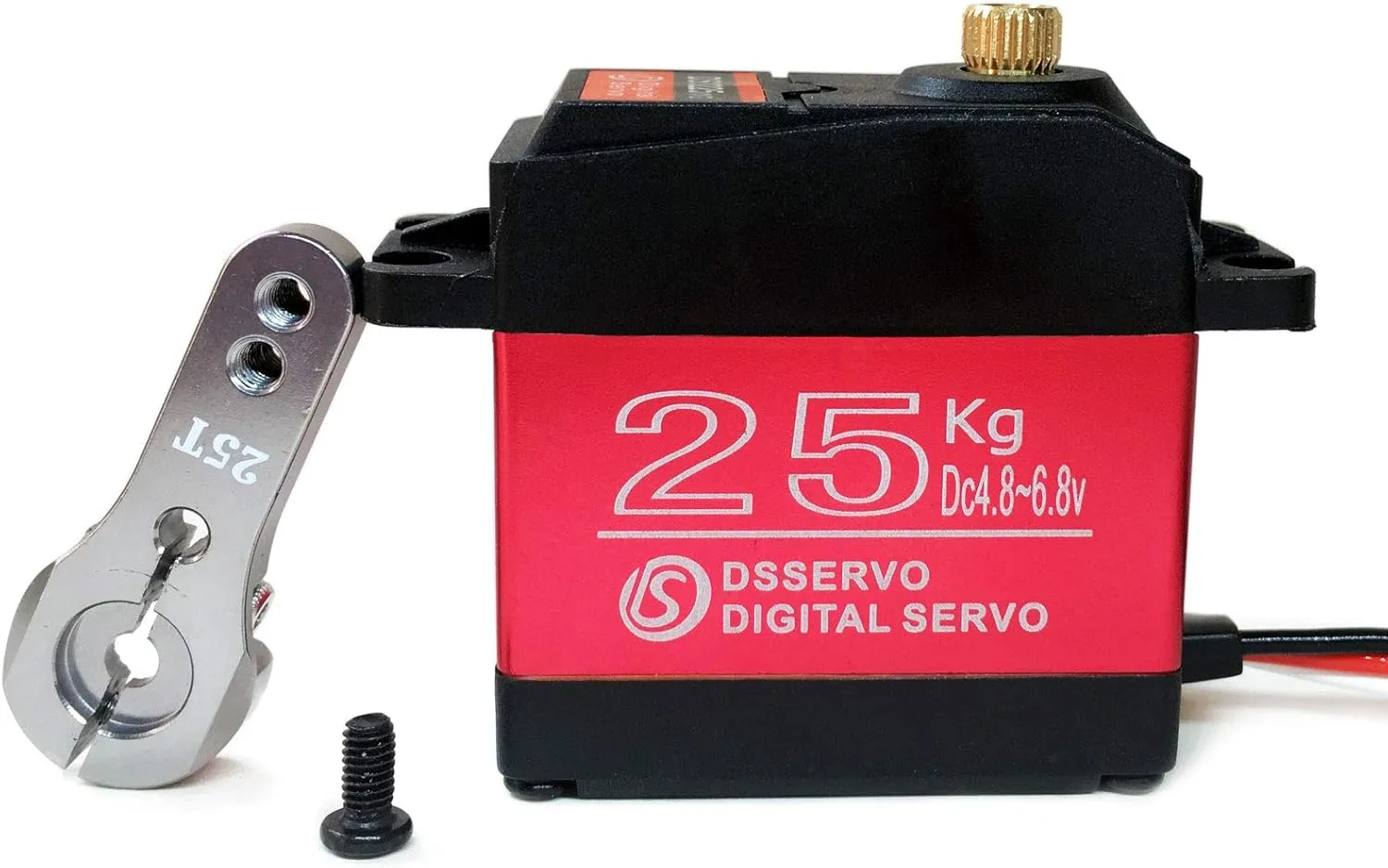

- ▶New Model: DS3225MG More torque higher speed
- ▶Power cord is longer up to 15.75inches(40cm),and also send with a 25T adjustable metal servo arm
- ▶Best for your DIY Project:compatible with 1/8 and 1/10 scale crawler,truck,buggy,robotic arm,and any application where standard servos are used
- ▶Equipped with high precision potentiometers and high-resolution digital chip, ensure stable performance, fast response, strong anti-interference ability,low noise, fast heat dissipation
- ▶Dimensions:1.57 x 0.78 x 1.59in (40 x 20 x 40.5 mm); Weight:2.64oz (75g)
Specification:
DS3225MG RC hobby servos are designed for remotely operating model vehicles,such as cars,airplanes,and robots.It provides the functionality of a light weight standard-sized servo, high-speed big torque, water-resistant,sensitive,responsive;
It features an all-metal gear train,digital control electronics,and two ball bearings on the output shaft for reduced friction, and it offers easy access to the rest-point adjustment potentiometer,making them great actuators for robotic projects.This new item is a very good choice for students and hobbyists. It will not let you down!
Electrical Specification：
Operating voltage range: 4.8 - 6.8V
Operating speed ( 5.0V ): 0.15 sec/60 degree
Operating speed ( 6.8V ): 0.13 sec/60 degree
Stall torque ( 5.0V ): 21kg/cm
Stall torque ( 6.8V ): 25kg/cm
Control Specification:
Control System: PWM(Pulse width modification)
Pulse width range: 500~2500 μsec
Neutral position: 1500μsec
Running degree: 270° (when 500~2500 μsec)
Dead band width: 3 μsec
Operating frequency: 50-330Hz
Rotating direction: Counterclockwise (when 500~2500 μsec)
Mechanical Specification:
Gear ratio: 275
Bearing: Double bearing
Connector wire: 17.7inches(450mm)
Motor: 3-pole(s)

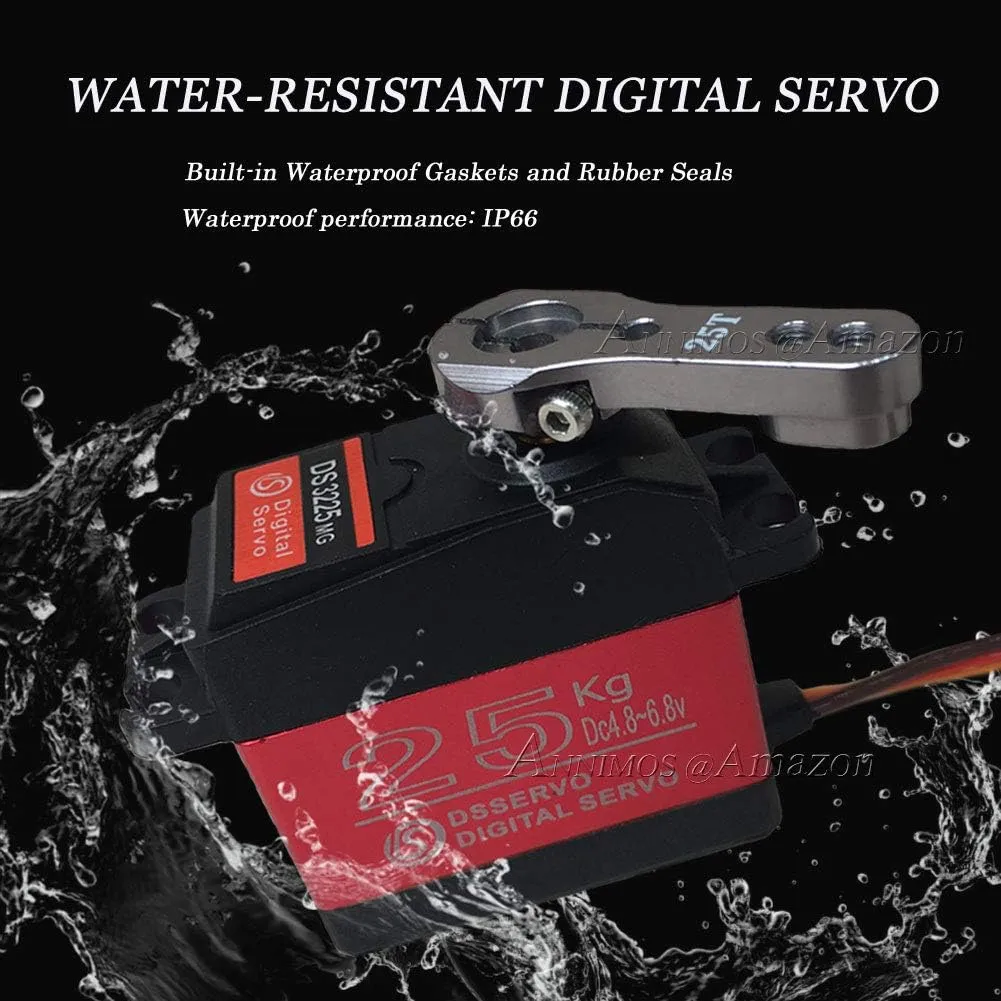

Waterproof performance: IP66
Package:
1 x DS3225MG Digital Servo
1 x 25T Adjustable metal servo arm
